ASUS ROG MAXIMUS XIII HERO MOTHERBOARD

Intel® Z590 ATX gaming motherboard with 14+2 power stages, PCIe 4.0, Onboard Wi-Fi 6E (802.11ax), Dual Intel® 2.5 Gb Ethernet, Quad M.2 with heatsinks and embedded backplates, Dual onboard Thunderbolt 4, USB 3.2 Gen 2×2 front-panel connector and Aura Sync RGB lighting

• Intel® Socket LGA 1200 for 11^th Gen Intel® Core™ processors and 10^th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
• Intelligent Control: ASUS-exclusive software and firmware utilities that simplify setup and improve performance: AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise Cancelation
• Robust Power Solution: 14+2 teamed power stages rated for 90 Amps, ProCool II power connectors, MicroFine alloy chokes and 10K Japanese-made black metallic capacitors
• Optimized Thermal Design: Enlarged VRM heatsinks plus integrated aluminum I/O cover, high-conductivity thermal pad, quad M.2 heatsinks with embedded backplates and ROG Water-Cooling Zone
• High-performance Networking: Onboard Wi-Fi 6E (802.11ax), dual Intel® 2.5 Gb Ethernet and ASUS LANGaurd
• Fastest Gaming Connectivity: PCIe 4.0, quad M.2, USB 3.2 Gen 2×2 front-panel connector, dual USB Type-C® ports with Thunderbolt™ 4 USB-C®
• Industry-leading Gaming Audio: ROG SupremeFX ALC4082 with ESS® ES9018Q2C DAC for high-fidelity audio
• Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 RGB headers
• DIY-friendly Design: Pre-mounted I/O shield, BIOS FlashBack™, Q-Code, FlexKey, Q-Connector, SafeSlot and Graphics Card Holder
• Renowned Software: Intuitive UEFI BIOS dashboard with integrated MemTest86

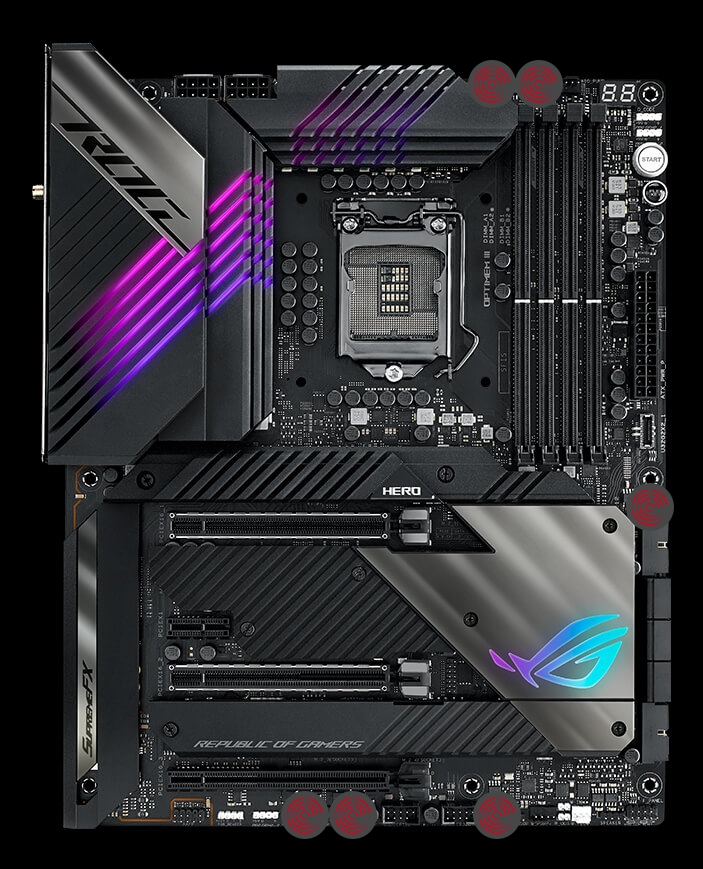

MAXIMUS XIII HERO

ROG Maximus XIII Hero continues to build on the legacy of its predecessors by packing upgraded power, smart cooling and lightspeed connectivity under a stealthy exterior. Bristling with renowned ROG features such as AI-enhanced controls and customizable Aura Sync illumination, the latest Hero is ready to take the helm of your high-end gaming build.

Intelligent Motherboard

Intelligent software solutions help ensure that your system performs at its best. The latest ASUS AI-powered enhancements span four pillars of performance, including overclocking, cooling, networking and onboard audio, making advanced tweaks and optimization accessible to new recruits and savvy PC DIY veterans alike.

*Specifications may vary, depending on CPU. Listed specifications are based on 11^th Gen Intel® Core™ desktop processors.

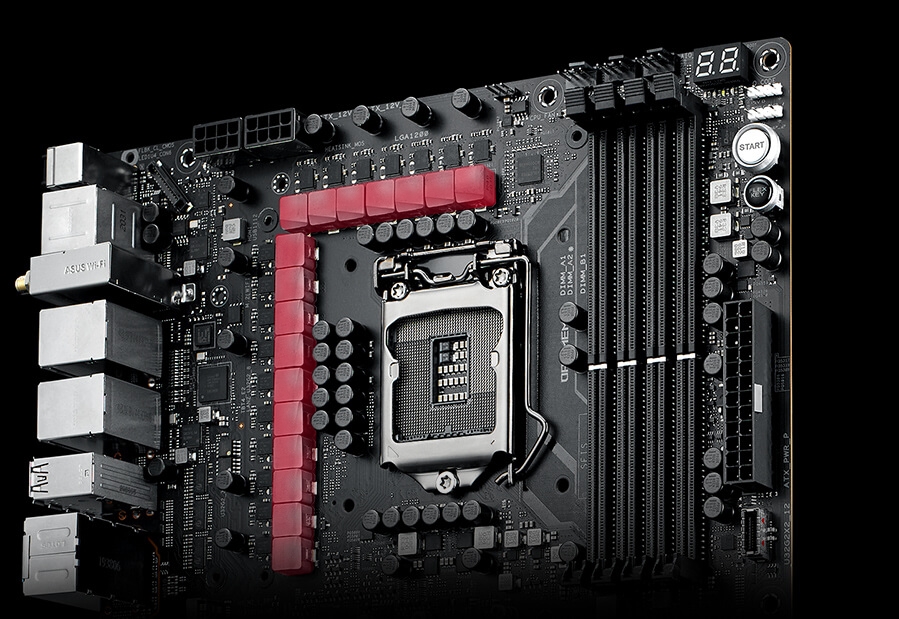

Teamed Power Architecture

Today’s CPU architectures place incredible demands on motherboard power design by transitioning from deep power-saving modes, going from lower-power mode to full load in an instant. The latest ROG VRM architecture rises to the challenge by utilizing teamed power stages to rapidly swing current, while maintaining exemplary thermal performance.

ASUS became the first manufacturer to implement phase-doublers with the A8N32-SLI Deluxe motherboard, back in 2005. The board’s VRM was lauded for elegantly overcoming the power handling capabilities of components that were available at the time while also reducing voltage ripple. Those benefits led to phase-doublers becoming universally accepted in the industry, and they are still used for similar purposes today.

However, today’s CPUs now pack more cores than their predecessors, and the latest instruction sets allow them to crunch computationally dense workloads at an incredible pace. In addition, they consume less power at idle and can transition between load states much more quickly. These improvements necessitate a re-evaluation of power-design priorities because phase-doublers add a propagation delay that hampers transient response.

While doublers help extend the number of effective phases, they do so at the cost of a processing delay.

Fortunately, the latest integrated power components can handle higher currents than the devices of yesteryear, making it possible to implement a simple circuit topology that isn’t hamstrung by the processing lag of phase-doublers. That’s why ROG Maximus XIII Hero utilizes teamed power stages to deliver higher burst current per phase, while maintaining the thermal performance of phase-doubled designs.

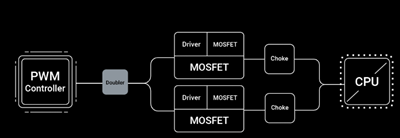

The teamed architecture allows two power stages to work in tandem to provide more power to the CPU.

Each VRM component serves a specific purpose. PWM controllers and phase-doublers control the circuit, and the power stages do the heavy lifting from an electrical and thermal standpoint. That’s why ROG Maximus XIII Hero utilizes 16 power stages. The power stage sits at the top of Infineon’s lineup and features a low RDSON to reduce switching and conduction losses, helping to improve overall thermal headroom.

The MOSFETs within the power stages generate the most heat as they are responsible for voltage conversion and delivery to the CPU from the 12-volt EPS connector.

ASUS OptiMem III

With proprietary memory trace layout tweaks that improve signal integrity and mitigate noise, OptiMem III allows memory kits to run at lower latencies, reduced voltages, and operate at higher frequencies. Stack ROG Maximus XIII Hero with your favorite modules and maximize the throughput of the 11^th Gen Intel Core Rocket Lake processor for applications that demand massive bandwidth.

G.Skill Memory 2×16 GB CL17 @4266 MHz

Lower the data is better

Test Configuration: 11^th Gen Intel® Core™ processors | ROG Maximus XIII Hero

Cooler by Design

ROG Maximus XIII Hero features the most comprehensive cooling options ever.

ROG Water-Cooling Zone

Dual water-temperature headers and a flow-rate header feed information straight into the AI Suite utility, allowing you to track coolant temperatures and the flow rate of the entire loop.

PCIe 4.0-Ready

ROG Maximus XIII Hero is equipped with four onboard M.2 slots, with two offering PCIe 4.0 support for the latest GPUs and high-speed SSDs.

SupremeFX

ROG SupremeFX audio technology delivers an exceptional 113 dB signal-to-noise ratio on the line-in connection to provide best-ever recording quality. There’s also a low-dropout regulator for cleaner power delivery to the SupremeFX ALC4082 codec, and an ESS® 9018Q2C integrated DAC capable of reaching -115 dB THD+N to provide playback that conveys all the subtlety and nuances of the audio track.

Level Up Performance

The dashboard-style control panel of AI Suite 3 lets you fine-tune almost every aspect of your ROG Maximus XIII Hero system with ease. Get the best balance between performance, cooling, stability, and efficiency via one simple and intuitive interface.

UEFI BIOS

The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

MemTest86 Pre-Installed

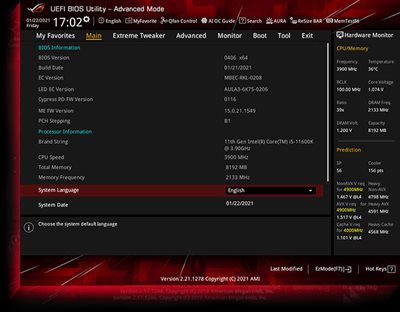

When you’re ready for a deeper dive, delve into the UEFI’s Advanced mode and take complete control. Advanced mode enables full control over every aspect of the motherboard, and a built-in search function helps you quickly find the setting you need.

MemTest86
Diagnose faulty RAM and memory problems that cause crashes and corrupt data.

My Favorites
Quickly find tuning options and add preferred tools to the list.

EZ Flash 3
Flash the latest BIOS via the internet from within the BIOS.

S.M.A.R.T.
Check your storage device Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T.) logs to gauge reliability and identify potential failures.

GPU POST
Automatically detect selected ASUS graphics cards to view detailed information.

Secure Erase
Restore your SSDs and NVMe storage to factory settings.

Last Modified Log
Track the last change and save preferred profiles to a USB drive.

SATA Port Renaming
Rename SATA ports for easy identification.

ASUS User Profile
Port configuration settings between different BIOS versions or share them with friends.

Q-Fan control
Configure the fan’s operating speed manually or use pre-configured fan profiles to quickly select Standard, Silent, Turbo or Full Speed modes. By default, system fans will automatically switch to full speed if the temperature reaches 75 °C.

Designed to simplify setup, EZ mode presents vital settings and stats on a single page. With guided wizards, drag-and-drop functionality, and one-click application of important settings, your rig will be up and running in no time.

Intuitive graphical fan controls
Fine-tune individual fans simply by dragging a curve with the mouse.

SATA information
View SATA port details for easy device recognition.

Fast and easy clock adjustment
Use the mouse to quickly change time and date settings.

Aura On/Off mode (Stealth)
Easily enable or disable Aura RGB lighting or every onboard LED, for a more subdued aesthetic.

Accurate Voltage Monitoring

Conventional motherboards use single-ended sensing tapped from a location that isn’t ideal, leading to a large disparity between the actual voltage fed to the CPU and the value reported to software. ROG Maximus XIII Hero features a differential-sensing circuit and delicate IC that simplify overclocking and tuning by allowing you to track voltages more accurately.

Grow Your Gaming World

Gear up with ROG components — from graphics card and monitors to mice and keyboards. And up your game with complementary aesthetics, control and compatibility. The ROG ecosystem is more extensive than any competing brand, so you’ll enjoy greater choice as your system expands.

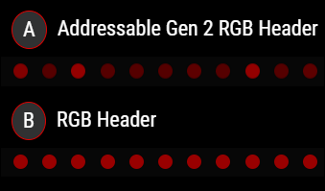

Addressable Gen 2 RGB Header

The addressable Gen 2 RGB headers now feature software that can automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.

RAMCache III software utility turns milliseconds into microseconds to boost game-load times. Fully compatible with the latest NVM Express® storage options, RAMCache III utilizes uniquely intelligent technology to effectively cache any storage device, so favorite games and apps launch at breakneck speeds.

Sonic Studio III

Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.

*A head-related transfer function is an audio algorithm derived from sound data recorded through a dummy head. Test tones are played from a spherical grid around the dummy head to obtain subtle changes in sounds that come from different directions. The results are combined into an algorithm that allows Sonic Studio’s virtual surround to process sound true to life.

DTS : Sound Unbound

ROG Maximus XIII Hero includes a pre-loaded DTS Sound Unbound app that envelops you in audio as never before, conjuring whole new levels of immersion for extraordinary gaming and entertainment experiences. By exploiting Windows Sonic spatial technology, DTS Sound Unbound delivers audio in a virtual 3D space — putting you right in the middle of the soundscape, where you can sense the location and direction of every gunshot, footstep or other sound in your virtual environment.

*DTS Sound Unbound requires in-game support. Check with developers for titles that offer support.

Armoury Crate

Armoury Crate is a software utility designed to provide centralized control of supported ROG gaming products. From a single intuitive interface, Armoury Crate puts command of all your Aura gear at your fingertips with the new Aura Creator suite ready. The software also provides control of settings for a growing number of ROG products, making it easier to tune the look and feel of your system. Armoury Crate even offers dedicated product registration and ROG news feeds to help you stay in touch with the ROG gaming community.

Graphics Card Holder

Featuring a magnetic base, adjustable slider and hinge, the ROG Graphics Card Holder banishes sag and provides support where it’s needed most.
