ASUS TUF GAMING B550-PLUS WIFI II

රු 82,500

wws Need Help? Contact Us via WhatsApp

Product Description

3 YEARS WARRANTY

ASUS TUF GAMING B550-PLUS WIFI II

LEARN MORE ABOUT THE ASUS TUF GAMING B550-PLUS WIFI II

Model
Brand ASUS
Model TUF GAMING B550-PLUS WIFI II
Supported CPU
CPU Socket Type  AM4
CPU Type Supports AMD Ryzen 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series Processors *

* Refer to www.asus.com for CPU support list.

Chipsets
Chipset  AMD B550
Memory
Number of Memory Slots 4x288pin (DDR4)
Memory Standard DDR4 4866(OC) / 4800(OC) / 4600(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133*

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

Maximum Memory Supported 128GB
Channel Supported  Dual Channel
ECC Supported ECC Memory (ECC mode) support varies by CPU.
Buffer Supported Un-buffered
Expansion Slots
PCI Express 4.0 x16 1 x PCI Express 4.0 x16*

* Actual support may vary by CPU..

PCI Express 3.0 x16  1 x PCI Express 3.0 x16*

* Supports x4 mode.

PCI Express x1 3 x PCIe 3.0 x1 *

* PCIE 3.0 X16_2 runs x1 mode when any of the PCIe 3.0 x1 slots is occupied.

Storage Devices
SATA 6Gb/s  6 x SATA 6Gb/s
M.2 AMD Ryzen 5000 Series / 3000 Series Desktop Processors:
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)AMD Ryzen 5000 G-Series / 4000 G-Series Desktop Processors:
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)AMD B550 Chipset:
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)** M2_2 shares bandwidth with SATA6G_56. When M.2_2 is populated, SATA6G_56 will be disabled.
SATA RAID 0/1/10
Onboard Video
Onboard Video Chipset  Supported only by CPU with integrated graphic
Onboard Audio
Audio Channels  7.1 Channels
Onboard LAN
LAN Chipset Realtek 2.5Gb Ethernet
Max LAN Speed 10/100/1000/2500Mbps
Wireless LAN Wi-Fi 6
802.11a/b/g/n/ac/ax
Bluetooth Bluetooth 5.2

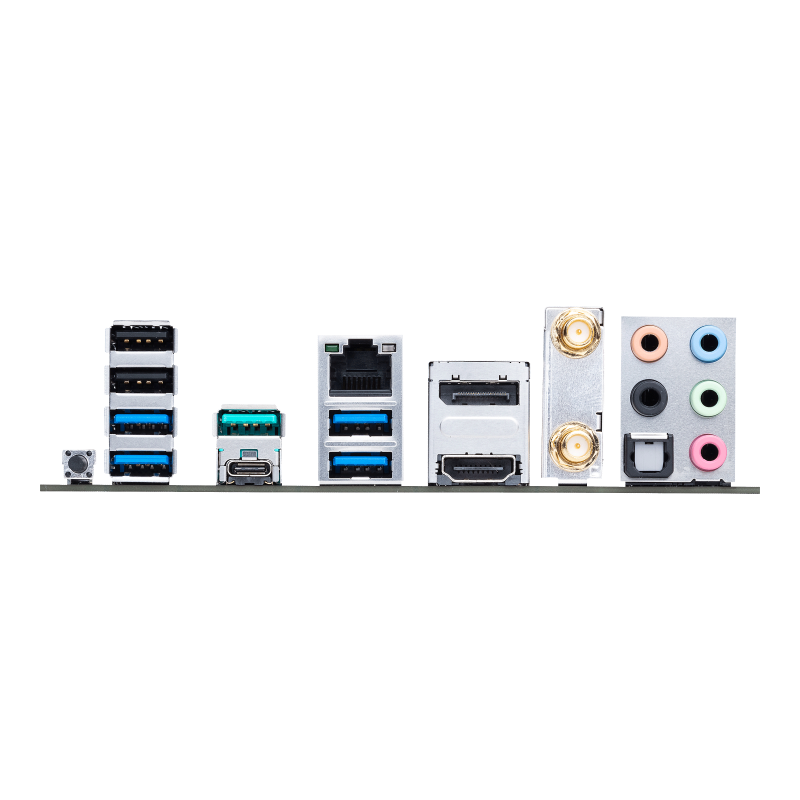

Rear Panel Ports
Back I/O Ports 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x ASUS Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
Internal I/O Connectors
Onboard USB 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Other Connectors Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
1 x 4-pin AIO Pump header(s)
3 x 4-pin Chassis Fan header(s)
Miscellaneous
2 x AURA Addressable Gen 2 header(s)
2 x AURA RGB header(s)
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header
1 x Thermal Sensor header
1 x Thunderbolt header
Physical Spec
Form Factor ATX
LED Lighting RGB
Dimensions (W x L) 12.0″ x 9.6″
Power Pin 1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Windows 11 Compatibility
Windows 11 Ready
Features
Features Special Features:
ASUS TUF PROTECTION
– ASUS DIGI+ VRM (Digital power design with Dr. MOS)
– ASUS Enhanced DRAM Overcurrent Protection
– ASUS ESD Guards
– TUF LANGuard
– ASUS Overvoltage Protection
– ASUS SafeSlot
– ASUS Stainless-Steel Back I/O
ASUS Q-Design
– ASUS Q-DIMM
– ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– ASUS Q-Slot
ASUS Thermal Solution
– Aluminum M.2 heatsink
ASUS EZ DIY
– BIOS FlashBack button
– BIOS FlashBack LED
– Procool
AURA Sync
– AURA RGB header(s)
– Addressable Gen 2 RGB header(s)Software Features:
ASUS Exclusive Software
Armoury Crate
– Aura Sync
– Two-Way AI Noise Cancelation
AI Suite 3
– Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 4
PC Cleaner
– EZ update
– System Information
Aura Creator
TUF GAMING CPU-Z
DTS Custom for GAMING Headsets
Norton Anti-virus software (Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ ModeBIOS:
256 Mb Flash ROM, UEFI AMI BIOSManageability:
WOL by PME, PXE

Operating System:
Windows 10 64-bit, Windows 11 64-bit

Packaging
Package Contents Accessories:
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 Rubber Package(s)
1 x M.2 SSD screw package(s)
1 x TUF Gaming sticker
1 x ASUS 2×2 dual-band Wi-Fi moving antennas
Installation Media
1 x Support DVD
Documentation
1 x TUF Certification card
1 x User manual
TUF GAMING B550-PLUS WIFI II
TUF GAMING B550-PLUS WIFI II
TUF GAMING B550-PLUS WIFI II
TUF GAMING B550-PLUS WIFI II
TUF GAMING B550-PLUS WIFI II
TUF GAMING B550-PLUS WIFI II
  • AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
  • Enhanced power solution: 8+2 DrMOS power stages, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability
  • Comprehensive cooling: VRM heatsink, PCH fanless heatsink, Dual M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
  • Next-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C, Thunderbolt™ 3 header support
  • Made for online gaming: Wi-Fi 6, 2.5 Gb Ethernet, and TUF LANGuard
  • AI noise-canceling microphone: provides crystal-clear in-game voice communication
